36K78xxT-1000R3-TR SERIES

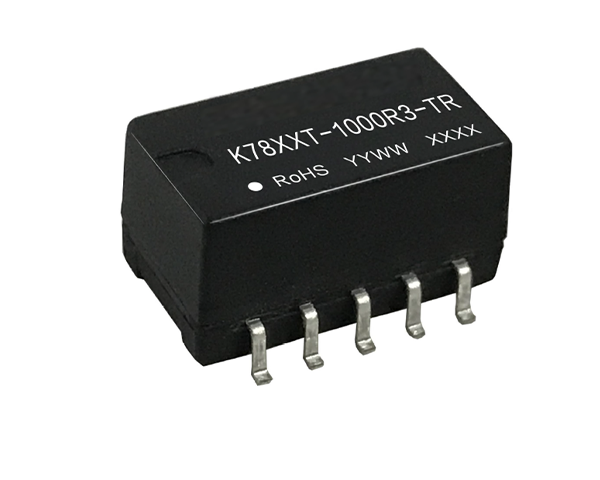

12W Non-Isolated DC/DC Converters in SMD

Ideal Power's 36K78xxT-1000R3-TR 12W Non-Isolated DC/DC Converters in SMD Series are certified to UKCA, CE, RoHS & EN 62368-1/IEC 62368-1/UL 62368-1 Standards and comply with the relevant Efficiency Regulations. These are primarily used in ITE, Audio & Video Industries and customised solutions are available upon request.

3D Drawings
Add compare
Home DC/DC Converters DC/DC PCB Mount Power Supply 36K78xxT-1000R3-TR

Features

  • High-Efficiency up to 95%
  • No-load input current as low as 0.2mA
  • Operating ambient temperature range: -40°C ~ +85°C
  • Output short-circuit protection
  • SMD package
  • EN 62368-1 Approved

Basic Specification

Product Type DC/DC Converters DC/DC PCB Mount Power Supply
Input Voltage 4.75~36V AC 47~63Hz
Number of Outputs Single
Input Connection SMD (Non-Isolated)
Dimensions 15.24x11.4x8.25mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 36K7801T-1000R3-TR
36K7801T-1000R3-TR
 1.5V DC 1A 1.5W Download Pdf
Compare 36K7802T-1000R3-TR
36K7802T-1000R3-TR
 2.5V DC 1A 2.5W Download Pdf
Compare 36K7803T-1000R3-TR
36K7803T-1000R3-TR
 3.3V DC 1A 3.3W Download Pdf
Compare 36K7805T-1000R3-TR
36K7805T-1000R3-TR
 5V DC 1A 5W Download Pdf
Compare 36K78X6T-1000R3-TR
36K78X6T-1000R3-TR
 6.5V DC 1A 6.5W Download Pdf
Compare 36K7809T-1000R3-TR
36K7809T-1000R3-TR
 9V DC 1A 9W Download Pdf
Compare 36K7812T-1000R3-TR
36K7812T-1000R3-TR
 12V DC 1A 12W Download Pdf
