40VDC-xxxxxXyyyy SERIES

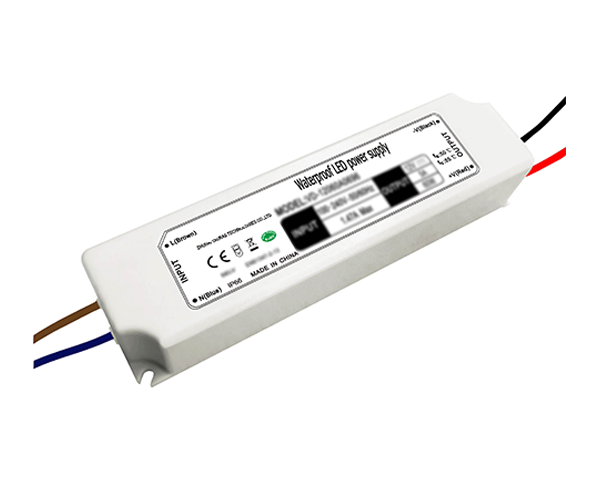

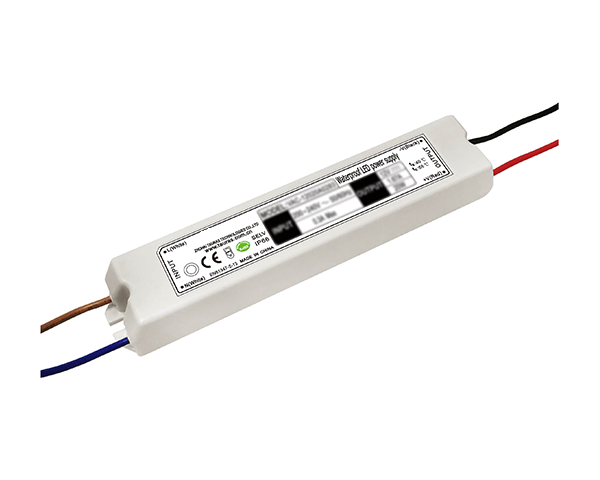

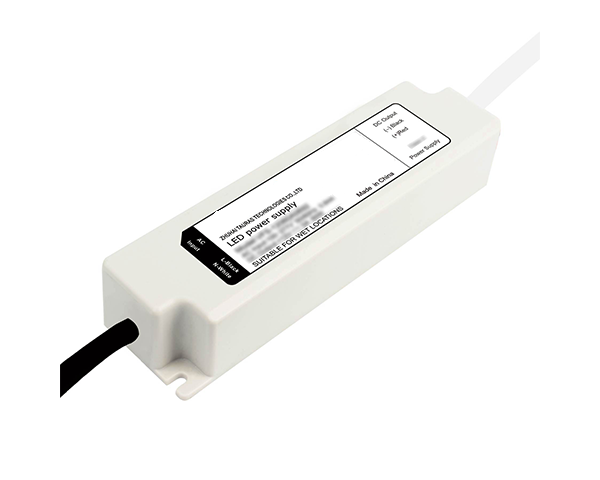

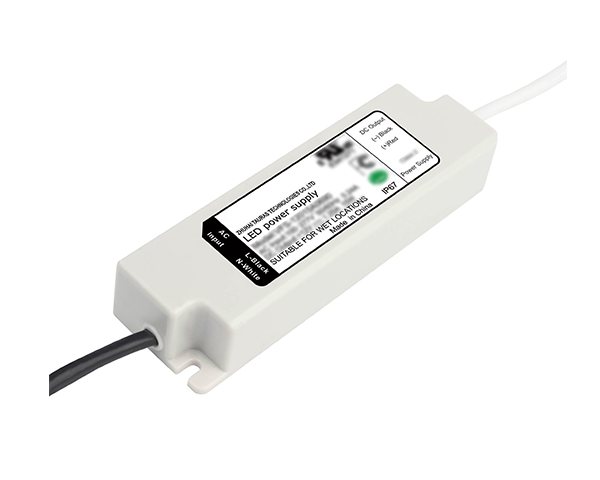

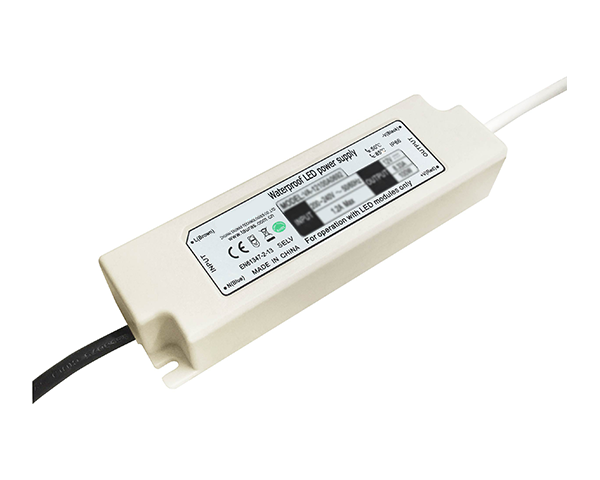

15~100W LED Driver

Ideal Power's 40VDC-xxxxxXyyyy 15~100W LED Driver Series are certified to UKCA, CE, CB, cURus, IP67, SELV, Isolation, RoHS & EN 50155Standards and comply with the relevant Efficiency Regulations. These are primarily used in LED Lighting Industries and customised solutions are available upon request.

Add compare
Home LED Drivers Waterproof CV IP67 40VDC-xxxxxXyyyy

Features

  • Constant Voltage
  • Input Voltage 100~240V AC
  • Built in Active PFC Function
  • OVP, OCP, OTP, SCP
  • Working Temperature -25°C ~ +40°C
  • Typical Efficiency 88%
  • IP67 Waterproof
  • Used in Floodlight and Outdoor Applications
  • High PFC ?0.5
  • Metal Case
  • 5 years warranty

Basic Specification

Product Type LED Drivers Waterproof CV IP67
Input Voltage 100~240V AC 47~63Hz
Output Power 15~100W
Number of Outputs Single
Input Connection
Dimensions Model Dependant
Industry LED Lighting
Standards EN 50155

Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 40VDC-12015A0283
40VDC-12015A0283
 12V DC 1.25A 15W Download Pdf
Compare 40VDC-24015A0283
40VDC-24015A0283
 24V DC 0.625A 15W Download Pdf
Compare 40VDC-24020A0283
40VDC-24020A0283
 24V DC 0.83A 19.9W Download Pdf
Compare 40VDC-12020A0283
40VDC-12020A0283
 12V DC 1.67A 20W Download Pdf
Compare 40VDC-12030D0690
40VDC-12030D0690
 12V DC 2.5A 30W Download Pdf
Compare 40VDC-24030A0690
40VDC-24030A0690
 24V DC 1.25A 30W Download Pdf
Compare 40VDC-12040A0695
40VDC-12040A0695
 12V DC 3.34A 40.1W Download Pdf
Compare 40VDC-24040A0695
40VDC-24040A0695
 24V DC 1.67A 40.1W Download Pdf
Compare 40VDC-12060A0696
40VDC-12060A0696
 12V DC 5A 60W Download Pdf
Compare 40VDC-24060A0696
40VDC-24060A0696
 24V DC 2.5A 60W Download Pdf
Compare 40VDC-24100A0692
40VDC-24100A0692
 24V DC 4A 96W Download Pdf
Compare 40VDC-12100A0692
40VDC-12100A0692
 12V DC 8.34A 100.1W Download Pdf
