Home / Internal Power Supply (PSU) / Enclosed Power Supplies / 56YMC20-xxT

Compare

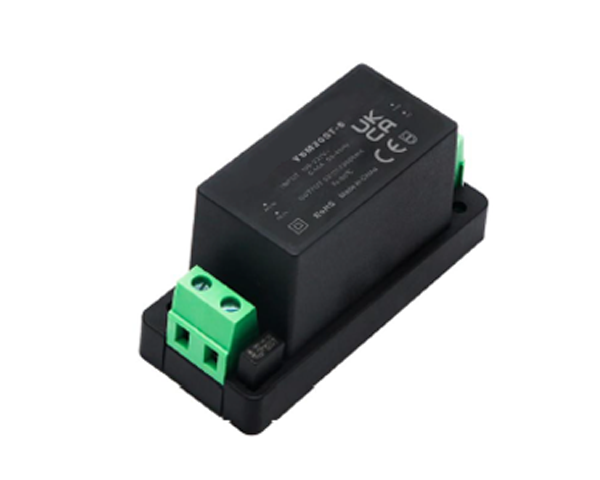

20W Chassis Mount AC/DC Power Supply56YMC20-xxT Series

The 56YMC20-xxT Series is a consistent and high-performing 20W Chassis Mount AC/DC Power Supply. Designed for use in applications such as embedded electronics and control equipment. This series is supplied with a Screw Terminal Block input connection and supports input voltages of 85~305V AC 47~63Hz. Certified to UKCA, CE, TUV-GS, RoHS, REACH and compliant with EN 62368-1/IEC 62368-1. This product range is engineered to streamline hardware development in IT, audio, and video applications — contact us for expert guidance. If you can’t find what you need, contact us for alternative or tailored options.

Features

Wide Input Voltage Range 85-305V AC
Super Small Design
Operating Temperature: 40°C~+85°C
Safety Standards to IEC/EN 62368-1
Certified to: UKCA, CE, TUV-GS, RoHS & REACH - UL Pending
Protection: SCP, OCP, OVP
Three Years Warranty

Basic Specification

Product Type	Internal Power Supply (PSU) Enclosed Power Supplies
Input Voltage	85~305V AC 47~63Hz
Output Power	20W
Number of Outputs	Single
Input Connection	Screw Terminal Block
Isolation	500V DC
Dimensions	76x31.5x32.8mm
Industry	ITE, Audio & Video
Standards	EN 62368-1, IEC 62368-1

Pdf Spec Sheet

Models in this series

Compare Products 0/4

Compare	Model	Output Voltage	Current	Power	Additional Info
Compare	56YMC20T-3.3	3.3V DC	4.5A	14.9W	Download Pdf
Compare	56YMC20T-9	9V DC	2.2A	19.8W	Download Pdf
Compare	56YMC20T-24	24V DC	0.83A	19.9W	Download Pdf
Compare	56YMC20T-5	5V DC	4A	20W	Download Pdf
Compare	56YMC20T-12	12V DC	1.67A	20W	Download Pdf
Compare	56YMC20T-15	15V DC	1.33A	20W	Download Pdf
