36LS05-13BxxR3-F SERIES

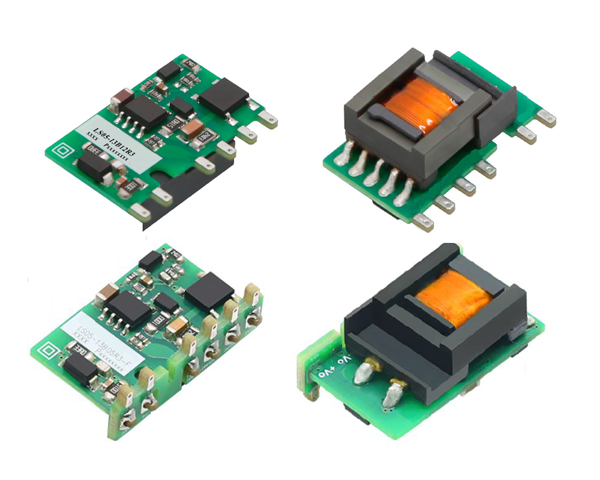

5W Open Frame PCB Mount AC/DC Power Supply Converter

Ideal Power's 36LS05-13BxxR3-F 5W Open Frame PCB Mount AC/DC Power Supply Converter Series are certified to UKCA, CE, CB, cURus, RoHS & EN 62368-1/IEC 62368-1/UL 62368-1/BS EN 62368-1/EN 60335-1/IEC 60335-1/EN 61558-1/IEC 61558-1 Standards and comply with the relevant Efficiency Regulations. These are primarily used in ITE, Audio & Video Industries and customised solutions are available upon request.

3D Drawings
Add compare
Home Internal Power Supply (PSU) PCB Mount Power Supplies 36LS05-13BxxR3-F

Features

  • Ultra-wide 85~305V AC or 70~430V DC input voltage range
  • Operating Temperature Range: -40°c~+85°C
  • Approved to UKCA, CE, CB, cURus, RoHS
  • Safety Standards to IEC/EN/UL 62368-1, IEC/EN 60335-1 & IEC/EN 61558-1
  • Efficiency up to 81%
  • EMC Class A & B
  • Single output 3.3~24V DC

Basic Specification

Product Type Internal Power Supply (PSU) PCB Mount Power Supplies
Input Voltage 85~305V AC 47~63Hz
Output Power 5W
Number of Outputs Single
Input Connection Open Frame
Isolation 5000V AC
Dimensions Model Dependant
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1, BS EN 62368-1, EN 60335-1, IEC 60335-1, EN 61558-1, IEC 61558-1

Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 36LS05-13B03R3
36LS05-13B03R3
 3.3V DC 1A 3.3W Download Pdf
Compare 36LS05-13B03R3-F
36LS05-13B03R3-F
 3.3V DC 1A 3.3W Download Pdf
Compare 36LS05-13B12R3-F
36LS05-13B12R3-F
 12V DC 0.4A 4.8W Download Pdf
Compare 36LS05-13B12R3
36LS05-13B12R3
 12V DC 0.4A 4.8W Download Pdf
Compare 36LS05-13B05R3
36LS05-13B05R3
 5V DC 1A 5W Download Pdf
Compare 36LS05-13B09R3
36LS05-13B09R3
 9V DC 0.56A 5W Download Pdf
Compare 36LS05-13B05R3-F
36LS05-13B05R3-F
 5V DC 1A 5W Download Pdf
Compare 36LS05-13B09R3-F
36LS05-13B09R3-F
 9V DC 0.56A 5W Download Pdf
Compare 36LS05-13B24R3
36LS05-13B24R3
 24V DC 0.21A 5W Download Pdf
Compare 36LS05-13B24R3-F
36LS05-13B24R3-F
 24V DC 0.21A 5W Download Pdf
Compare 36LS05-13B15R3-F
36LS05-13B15R3-F
 15V DC 0.34A 5.1W Download Pdf
Compare 36LS05-13B15R3
36LS05-13B15R3
 15V DC 0.34A 5.1W Download Pdf
