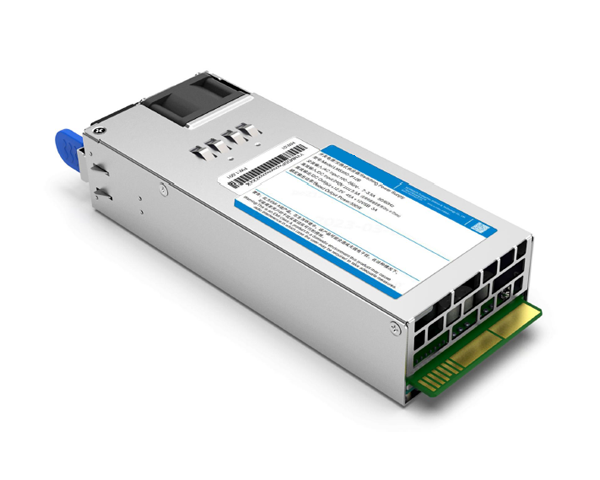

550W Enclosed AC/DC Power Supply (PSU)

Ideal Power's 36LMS550-P12B 550W Enclosed AC/DC Power Supply (PSU) Series are certified to RoHS & EN 62368-1/IEC 62368-1/UL 62368-1 Standards and comply with the relevant Efficiency Regulations. These are primarily used in ITE, Audio & Video Industries and customised solutions are available upon request.

3D Drawings
Add compare


  • Universal Input 90~264V AC and accepts AC & HVDC wide voltage range input
  • 80 PLUS platinum efficiency
  • Operating ambient temperature range: -5°C ~ +55°C
  • Active current sharing function
  • N+M Intelligent redundancy N+M?4 (N=3 max, M=2 max)
  • EN/IEC/UL 62368-1 Safety Approved
  • Over-current alarm, OCP, SCP, OVP, UVP, OTP & fan-fault protection
  • 5 years warranty

Basic Specification

Product Type Internal Power Supply (PSU) Enclosed Power Supplies
Input Voltage 90~264V AC 47~63Hz
Output Power 550W
Number of Outputs Single
Input Connection C14
Isolation 3000V AC
Dimensions 73.5x185x40mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 36LMS550-P12B 12.2V DC 1A 552.2W Download Pdf
