36LM75-23BxxR2 SERIES

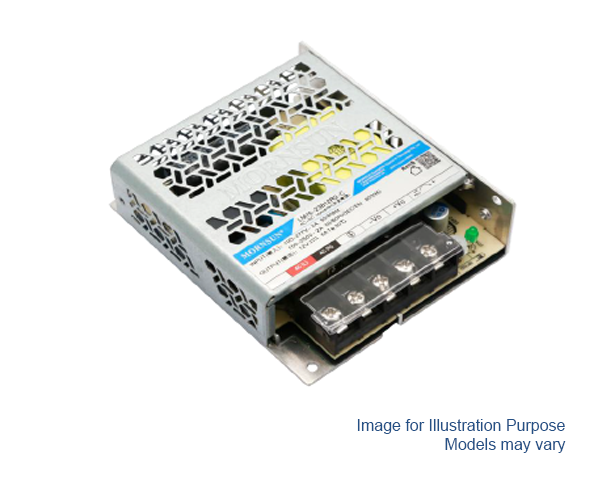

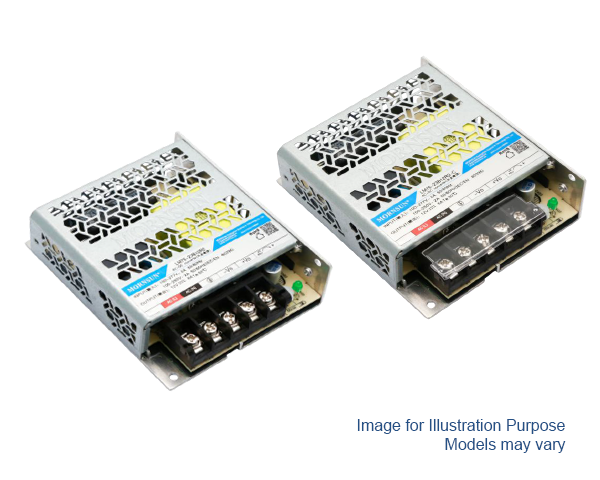

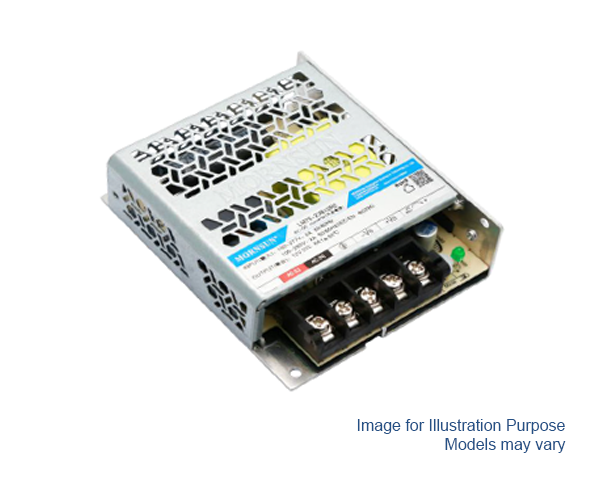

75W Enclosed AC/DC Switching Power Supply

Ideal Power's 36LM75-23BxxR2 75W Enclosed AC/DC Switching Power Supply Series are certified to RoHS & EN 62368-1/IEC 62368-1/UL 62368-1 Standards and comply with the relevant Efficiency Regulations. These are primarily used in ITE, Audio & Video Industries and customised solutions are available upon request.

3D Drawings
Add compare
Home Internal Power Supply (PSU) Enclosed Power Supplies 36LM75-23BxxR2

Features

  • Universal 80~305V AC or 100~430V DC input voltage
  • Operating ambient temperature range: -40°C ~ +85°C
  • Low standby power consumption, High-Efficiency
  • High I/O isolation test voltage up to 4000V AC
  • Efficiency up to 92.5%
  • Output: OSC, OCP, OVP
  • Operating altitude up to 5000m
  • Available with suffix C & Q, refer to spec sheet

Basic Specification

Product Type Internal Power Supply (PSU) Enclosed Power Supplies
Input Voltage 80~305V AC 47~63Hz
Output Power 75W
Number of Outputs Single
Input Connection Screw Connection
Isolation 4000V AC
Dimensions 99x82x30mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 36LM75-23B05R2
36LM75-23B05R2
 5V DC 14A 70W Download Pdf
Compare 36LM75-23B12R2
36LM75-23B12R2
 12V DC 6A 72W Download Pdf
Compare 36LM75-23B15R2
36LM75-23B15R2
 15V DC 5A 75W Download Pdf
Compare 36LM75-23B36R2
36LM75-23B36R2
 36V DC 2.1A 75.6W Download Pdf
Compare 36LM75-23B48R2
36LM75-23B48R2
 48V DC 1.6A 76.8W Download Pdf
Compare 36LM75-23B24R2
36LM75-23B24R2
 24V DC 3.2A 76.8W Download Pdf
Compare 36LM75-23B54R2
36LM75-23B54R2
 55V DC 1.4A 77W Download Pdf
