6W Interchangeable AC/DC Plugtop Adapter Power Supply25HK-AP-xAz-CP-3A Series

25HK-AP-xAz-CP-3A
25HK-AP-xAz-CP-3A
25HK-AP-xAz-CP-3A

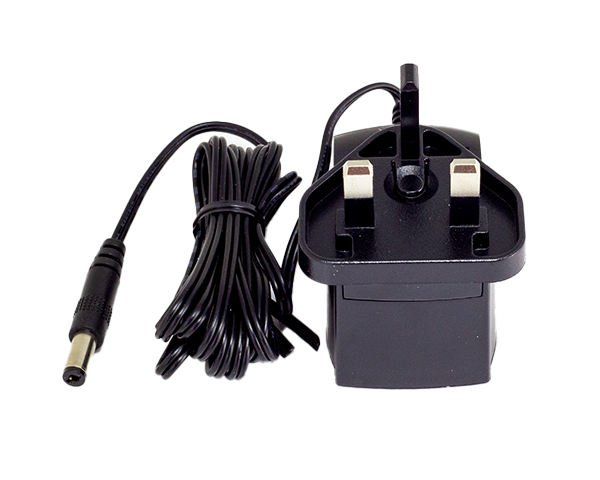

The 25HK-AP-xAz-CP-3A Series is a versatile and reliable 6W Interchangeable AC/DC Plugtop Adapter Power Supply. Designed for use in applications such as automation and control within IT and AV systems. This series is supplied with a Interchangeable input connection and supports input voltages of 100~240V AC 47~63Hz. Certified to UKCA, cULus, TUV, CE, RoHS and compliant with EN 62368-1/IEC 62368-1/UL 62368-1. Optimised for modern AV and ITE electronic designs, this product range offers dependable performance — check out the full range. If you can’t find what you need, contact us for alternative or tailored options.

Features

  • Universal Input 90-264V AC
  • Approved to UKCA, cULus, TUV, CE & RoHS
  • IEC/EN 62368-1 Safety Approved
  • Meets Efficiency Level VI
  • FCC Class B Certified
  • Single Output 5~24V DC
  • OVP, OCP, OTP, SCP

Basic Specification

Product Type External Power Supply (PSU) Adapter Interchangeable Power Supply
Input Voltage 100~240V AC 47~63Hz
Output Power 6W
Number of Outputs Single

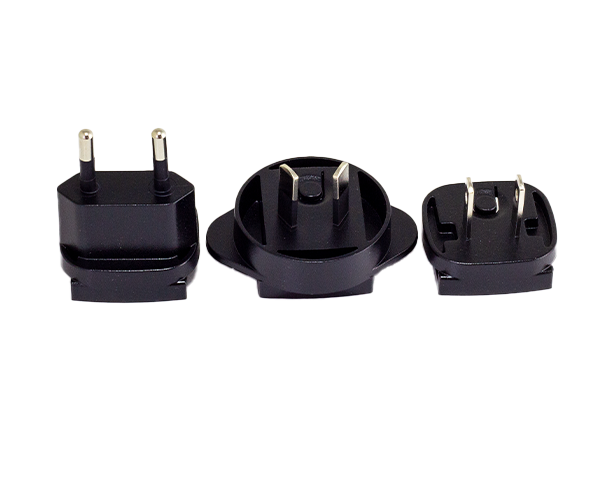

Input Connection Interchangeable
Dimensions 64.5x38x34.8mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Speak To The Power Supply & Conversion Experts

Get In Touch

Models in this series

Compare Model Image Output Voltage Current Power Additional Info
Compare
25HK-AP-150A040-CP-3A
25HK-AP-150A040-CP-3A
15V DC 0.4A 6W Download Pdf
Compare
25HK-AP-060A100-CP-3A
25HK-AP-060A100-CP-3A
6V DC 1A 6W Download Pdf
Compare
25HK-AP-050A120-CP-3A
25HK-AP-050A120-CP-3A
5V DC 1.2A 6W Download Pdf
Compare
25HK-AP-090A067-CP-3A
25HK-AP-090A067-CP-3A
9V DC 0.67A 6W Download Pdf
Compare
25HK-AP-120A050-CP-3A
25HK-AP-120A050-CP-3A
12V DC 0.5A 6W Download Pdf
Compare
25HK-AP-240A025-CP-3A
25HK-AP-240A025-CP-3A
24V DC 0.25A 6W Download Pdf
