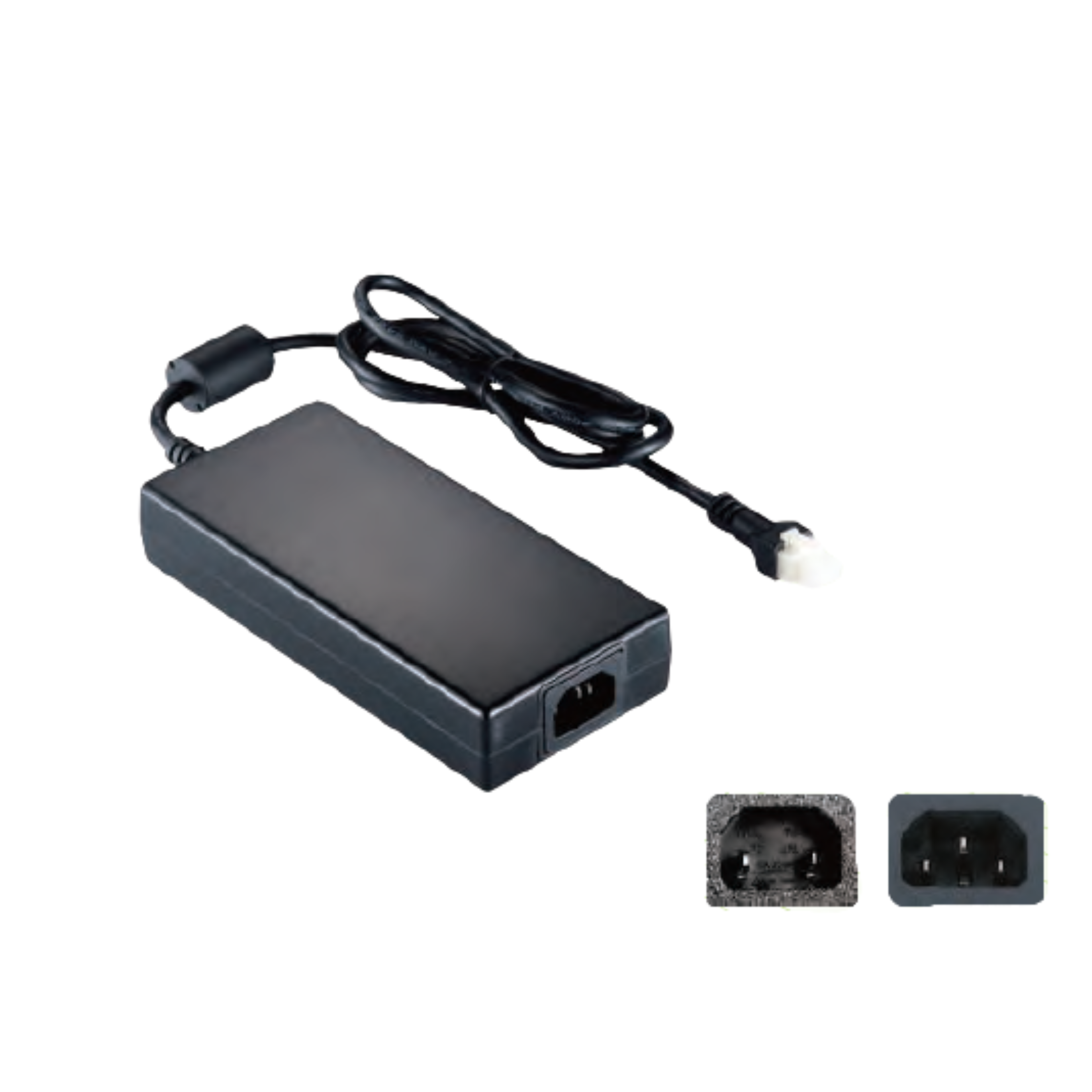

External AC/DC Desktop Medical Power Supply44ATM300T-P120

The ATM300T-P120 is a Single output 12V DC 25A 300W model and delivers product-level reliability where space and stability matter. The 44ATM300T-Pxyz Series is a safe and consistent, medically approved 300W External AC/DC Desktop Medical Power Supply. Designed for use in applications such as surgical, therapeutic and diagnostic machinery. This series is supplied with a IEC C14 input connection and supports input voltages of 90~240V AC 47~63Hz. Certified to cULus, UKCA, CB, PSE, FCC, CE, TUV, RoHS, REACH and compliant with EN 60601-1/IEC 60601-1/ES 60601-1. A dependable choice for engineers, this product range is designed for safe integration into patient-use medical applications. If you can’t find what you need, contact us for alternative or tailored options.

Features

Approved to cULus, UKCA, CB, PSE, FCC, CE, RoHS & REACH
Earthed/Ground connected to 0V
IEC 60601-1-2:2014(ED 4.0) Safety Approved
Means of Protection: 2 X MOPP
Meets Efficiency Level VI
Single Output 12~24V DC
Universal Input 100~240V AC

Basic Specification

Product Type	External Power Supply (PSU) Desktop Power Supply
Input Voltage	90~264V AC
Output	12V DC 25A
Output Power	300W
Number of Outputs	Single
Output Connector	8 Pin Molex 39-01-2080
Dimensions	254x116x47mm
Industry	Medical
Standards	EN 60601-1, IEC 60601-1, ES 60601-1
