56YCL150-xy-zzW SERIES

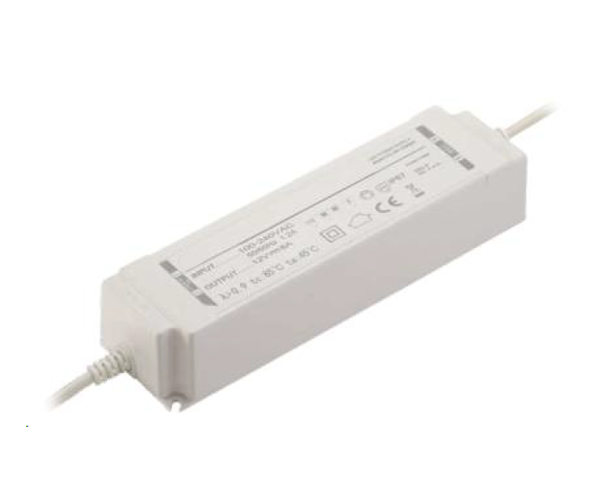

150W Constant Voltage (IP67) LED Driver

The YCL150 Series is designed for high-power LED lighting and comes fully certified to UKCA, TUV-GS, RoHS, REACH and IEC 61347 standards. Its IP67 rating ensures protection in exposed conditions, making it a solid choice for floodlights, industrial fixtures, and larger-scale outdoor installations. Custom solutions can be supplied on request.

Features

Class II Protection Design
Dimming Available
Flicker-free Design
Input Voltage Range 220~240V AC
IP67 Waterproof
Protection OVP, OLP, SCP
Working Temperature -20°C ~ +45°C

Basic Specification

Product Type	LED Drivers Waterproof CV IP67
Input Voltage	220~240V AC 47~63Hz
Output Power	150W
Number of Outputs	Single
Input Connection	Wires
Dimensions	191x68x37mm
Industry	LED Lighting
Standards	IEC 61347-1, IEC 61347-2-13

Pdf Spec Sheet

Models in this series

Compare Products 0/4

Compare	Model	Output Voltage	Current	Power	Additional Info
Compare	56YCL150-36004160	36V DC	4.16A	149.8W	Download Pdf
Compare	56YCL150-48003125	48V DC	3.125A	150W	Download Pdf
Compare	56YCL150-12012500	12V DC	12.5A	150W	Download Pdf
Compare	56YCL150-24006250	24V DC	6.25A	150W	Download Pdf
Compare	56YCL100-48004160	48V DC	4.16A	199.7W	Download Pdf
Compare	56YCL150-36005550	36V DC	5.55A	199.8W	Download Pdf
Compare	56YCL150-24008330	24V DC	8.33A	199.9W	Download Pdf
Compare	56YCL150-12016660	12V DC	16.66A	199.9W	Download Pdf
