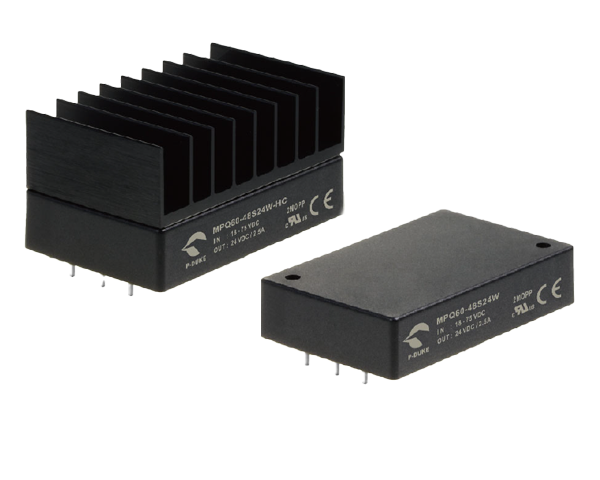

43MPQ60-24D12W

Quarter Brick DC/DC Converters

Ideal Power MPQ60-24D12W 12V DC 2.5A Dual output 60W model. Certified to UKCA, CE, cURus, FCC, CB, RoHS, REACH & EN 60601-1/ES 60601-1/IEC 62368-1/EN 62368-1/UL 62368-1 Standards and complies with the relevant Efficiency Regulations. These are primarily used in Medical, ITE, Audio & Video Industries and customised solutions are available upon request.

Features

4:1 Wide Input Range
Approved to UKCA, CE, cURus, RoHS & REACH
Available with optional Heat-Sink
Efficiency up to 92.5%
EMC Class A & B
Operating Temperature Range: -40°C~105°C
Safety Standards to IEC/UL/EN 62368-1 & EC/ EN/ ANSI/ AAMI ES 60601-1
Single output 9~75V DC

Basic Specification

Product Type	DC/DC Converters DC/DC PCB Mount Power Supply
Input Voltage	9~36V DC
Primary Output	12V DC 2.5A
Secondary Output	-12V DC -2.5A
Output Power	60W
Number of Outputs	Dual
Efficiency	90.0%
Output Connector	DIP
Dimensions	2.28x1.45x0.5"
Industry	Medical, ITE, Audio & Video
Standards	EN 60601-1, ES 60601-1, IEC 62368-1, EN 62368-1, UL 62368-1

Pdf Spec Sheet

3D Drawings

Other Models in this series

Compare Products 0/4

Compare	Model	Output Voltage	Current	Power	Additional Info
Compare	43MPQ60-24D15W	15V DC	2A	60W	Download Pdf
Compare	43MPQ60-24S05W	5V DC	12A	60W	Download Pdf
Compare	43MPQ60-24S12W	12V DC	5A	60W	Download Pdf
Compare	43MPQ60-24S15W	15V DC	4A	60W	Download Pdf
Compare	43MPQ60-24S24W	24V DC	2.5A	60W	Download Pdf
Compare	43MPQ60-24S5P1W	5V DC	12A	60W	Download Pdf
Compare	43MPQ60-48D12W	12V DC	2.5A	60W	Download Pdf
Compare	43MPQ60-48D15W	15V DC	2A	60W	Download Pdf
Compare	43MPQ60-48S05W	5V DC	12A	60W	Download Pdf
Compare	43MPQ60-48S12W	12V DC	5A	60W	Download Pdf
Compare	43MPQ60-48S15W	15V DC	4A	60W	Download Pdf
Compare	43MPQ60-48S24W	24V DC	2.5A	60W	Download Pdf
Compare	43MPQ60-48S5P1W	5V DC	12A	60W	Download Pdf
