AC/DC External Desktop Power Supply | Ideal Power Ltd

15DYS850-300168W

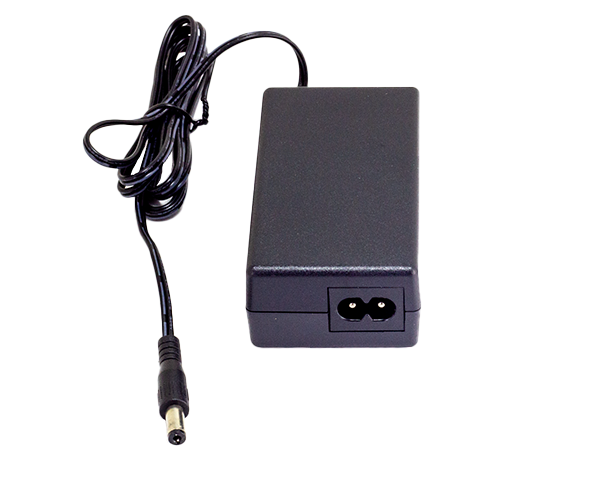

AC/DC External Desktop Power Supply

Ideal Power 15DYS850-300168W 30V DC 1.68A Single output 50.4W model. Certified to UKCA, CE, cULus, TUV, RCM (C-Tick), RoHS, REACH & EN 62368-1/IEC 62368-1/UL 62368-1 Standards and complies with (EU) 2019/1782, Level VI Efficiency Regulations. These are primarily used in ITE, Audio & Video Industries and customised solutions are available upon request.

Add compare

Features

  • Approved to CE, cULus, RCM (C-Tick), RoHS & REACH
  • FCC Class B Certified
  • Meets Efficiency Level VI
  • OVP, OCP, OTP, SCP
  • Single Output 9~30V DC
  • UL/IEC/EN 62368-1 Safety Approved
  • Universal Input 100~240V AC

Basic Specification

Product Type External Power Supply (PSU) Desktop Power Supply
Input Voltage 90~264V AC
Output 30V DC 1.68A
Output Power 50.4W
Number of Outputs Single
Efficiency
Output Connector 2.1 x 5.5 x 12 mm
Dimensions 97.5x52.5x32.3mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Also Available From

Digikey

Product Code: 2882-15DYS850-300168W-ND

Contact us

Reach out to discuss your power conversion requirements today.

Declaration

Click below to request the Series Declaration (PDF Download).

Request Declaration

Other Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 15DYS850-090500W 9V DC 5A 45W Download Pdf
Compare 15DYS850-120420W 12V DC 4.2A 50.4W Download Pdf
Compare 15DYS850-150336W 15V DC 3.36A 50.4W Download Pdf
Compare 15DYS850-180280W 18V DC 2.8A 50.4W Download Pdf
Compare 15DYS850-240210W 24V DC 2.1A 50.4W Download Pdf

Are you ready?

Speak to the power supply & conversion experts

15DYS850-xyW
