125W DIN Rail Mount AC/DC Power Supply Converter | Ideal Power Ltd

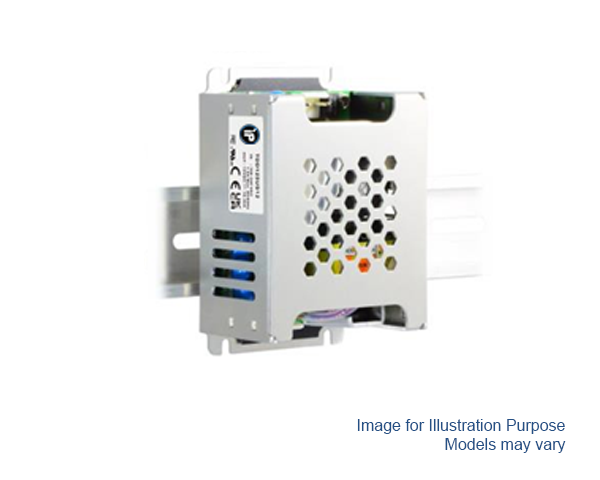

125W DIN Rail Mount AC/DC Power Supply Converter

Certified to UKCA, CE, cURus, FCC, CB, RoHS, REACH & EN 62368-1/IEC 62368-1/UL 62368-1 Standards and complies with the relevant Efficiency Regulations. These are primarily used in ITE, Audio & Video Industries and customised solutions are available upon request.

Add compare


  • Approved to UKCA, CE, CB, cURus, FCC, RoHS & REACH
  • EN/IEC/UL 62368-1 Safety Approved
  • High-Efficiency Rating up to 92%
  • Operating ambient temperature range: -40°C ~ +85°C
  • Output Voltage 12~48V DC
  • Universal Input 85~264V AC

Basic Specification

Product Type Internal Power Supply (PSU) DIN Rail Power Supplies
Input Voltage 85~264V AC 47~63Hz
Output Power 125W
Number of Outputs Single
Input Connection DIN Rail
Isolation 3000V AC
Dimensions 1.97x1.77x1.54"
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 43TDD125US12B 12V DC 8.34A 100.1W Download Pdf
Compare 43TDD125US15B 15V DC 6.67A 100.1W Download Pdf
Compare 43TDD125US18B 18V DC 5.56A 100.1W Download Pdf
Compare 43TDD125US24B 24V DC 4.17A 100.1W Download Pdf
Compare 43TDD125US36B 36V DC 2.78A 100.1W Download Pdf
Compare 43TDD125US28B 28V DC 3.58A 100.2W Download Pdf
Compare 43TDD125US48B 48V DC 2.09A 100.3W Download Pdf
