36LM150-23BxxR2 SERIES

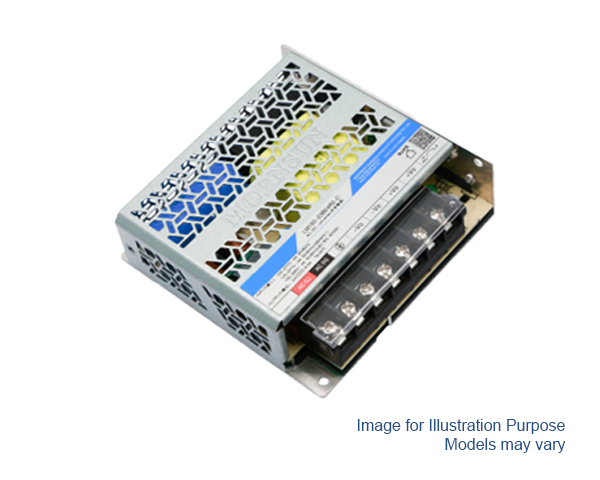

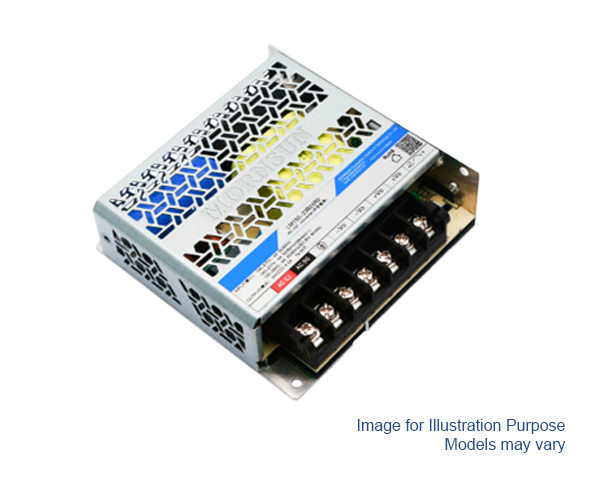

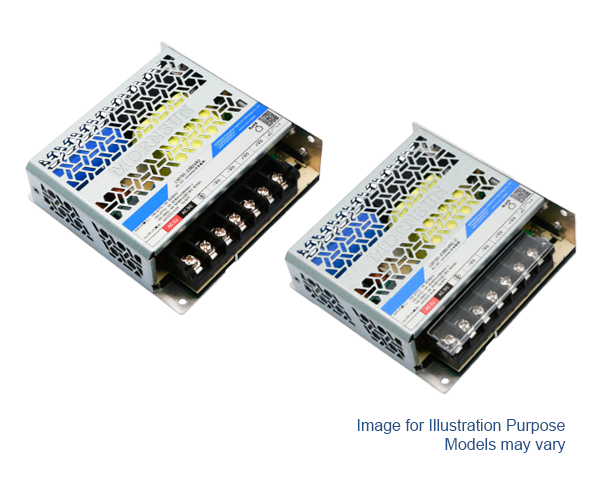

150W Enclosed AC/DC Switching Power Supply

Ideal Power's 36LM150-23BxxR2 150W Enclosed AC/DC Switching Power Supply Series are certified to RoHS & EN 62368-1/IEC 62368-1/UL 62368-1 Standards and comply with the relevant Efficiency Regulations. These are primarily used in ITE, Audio & Video Industries and customised solutions are available upon request.

3D Drawings
Add compare
Home Internal Power Supply (PSU) Enclosed Power Supplies 36LM150-23BxxR2

Features

  • Universal 80~305V AC or 100~430V DC input voltage
  • Operating Temperature Range: -40°c~+85°C
  • Approved to RoHS
  • Safety Standards to UL/EN/IEC 62368-1
  • Efficiency up to 92%
  • EMC Class A & B
  • Single output 12~54V DC
  • Available with suffix C, Q & QQ, refer to spec sheet

Basic Specification

Product Type Internal Power Supply (PSU) Enclosed Power Supplies
Input Voltage 80~305V AC 47~63Hz
Output Power 150W
Number of Outputs Single
Input Connection Screw Connection
Isolation 4000V AC
Dimensions 99x97x30mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 36LM150-23B12R2
36LM150-23B12R2
 12V DC 12.5A 150W Download Pdf
Compare 36LM150-23B15R2
36LM150-23B15R2
 15V DC 10A 150W Download Pdf
Compare 36LM150-23B54R2
36LM150-23B54R2
 55V DC 2.8A 154W Download Pdf
Compare 36LM150-23B36R2
36LM150-23B36R2
 36V DC 4.3A 154.8W Download Pdf
Compare 36LM150-23B24R2
36LM150-23B24R2
 24V DC 6.5A 156W Download Pdf
Compare 36LM150-23B48R2
36LM150-23B48R2
 48V DC 3.3A 158.4W Download Pdf
